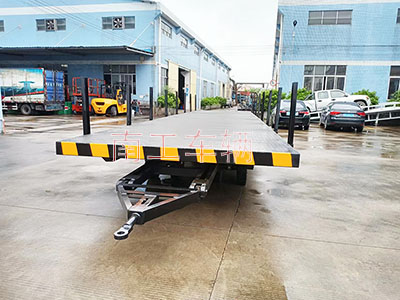

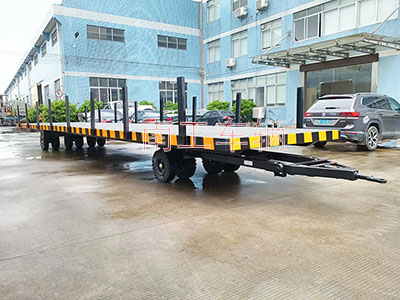

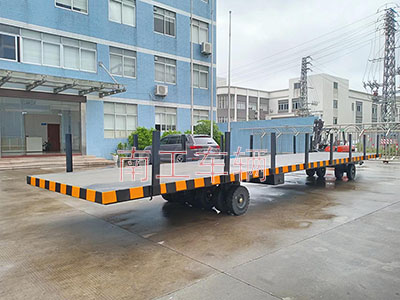

20 ton 12 meter heavy-duty flat trailer with pile insertion type

Brand: Nangong, model: TTL12000-120 * 25JZ20T, load capacity: 20 tons, board size: 12 * 2.5 meters, self weight: 4485KG, color: black;

Detailed parameters of a 20 ton 12 meter heavy flat trailer: to be executed according to the plan confirmed by both parties

1. The carrying capacity of the flatbed truck is 20 tons, and the platform's main beam is made of 25 gauge steel and the side beam is made of 14 gauge steel.

2. The board surface is a 4mm patterned board, with a width of 2.5 meters, a length of 12 meters, and a height of approximately 0.85 meters.

3. This car has 10 models 650-10 with solid wheels and rigid suspension

4. The design concept of this car is suspended, and it can adjust the body level and tire load balance according to the smoothness of the road surface.

5. The left and right rotation angle of the front wheels is 180 degrees, which facilitates small radius turning

6. The steering mechanism is a turntable type machine rotating assembly (20T, Ø 1100 * 90).

7. Weld 6 hooks on both sides

8. Matte black with yellow warning stripes sprayed around

9. Equipped with connectors and pins

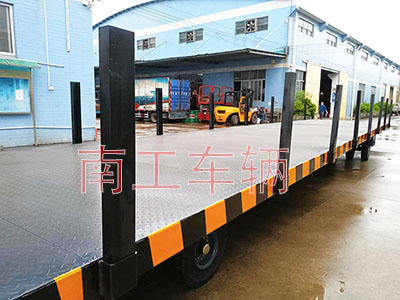

10. Weld a 70MM detachable column every 1.5 meters on both sides of the trailer;

The 20 ton 12 meter heavy-duty flat trailer has a detachable guardrail with plug-in piles, which has been customized by Nangong vehicles for a long time. The board height is low, the loading capacity is large, and there is no risk of tire breakage or explosion. It is simple and durable, with low cost. It has no power and requires a tractor or forklift for towing.

Application: Flat trailer is widely used for transporting goods between airports, ports, docks, railway stations, factories, and large warehouses.
